Appendix B – Data Dictionary
→

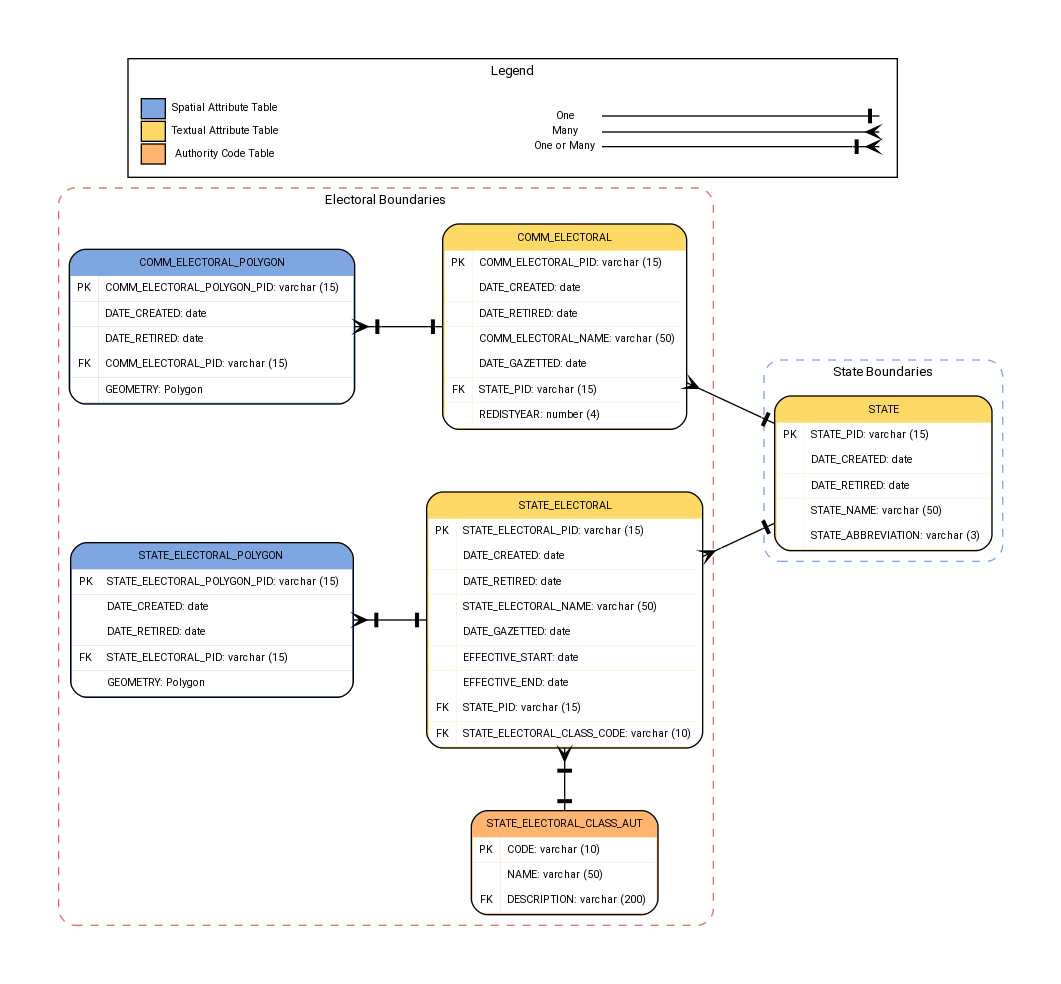

Appendix A – Data Model Diagram
¶
←
Appendices
Appendix B – Data Dictionary
→
![digraph G {
fontname="ROBOTO" fontsize="10pt"
node [fontname="ROBOTO" fontsize="8pt"]
edge [fontname="ROBOTO" fontsize="8pt"]
rankdir=LR
graph [pad="0.5", ranksep="0.75", nodesep="0.65"];
subgraph cluster_property { label="Electoral Boundaries"
graph[style="dashed,rounded" color="#EA6B66"]
comm_electoral_polygon [shape=plain
label=<<TABLE BGCOLOR="#7EA6E0"
BORDER="1"
CELLBORDER="0"
style="rounded"
CELLSPACING="0"
CELLPADDING="5">
<TR>
<TD COLSPAN="2">COMM_ELECTORAL_POLYGON</TD>
</TR>
<TR>
<TD BGCOLOR="white" >PK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >COMM_ELECTORAL_POLYGON_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_CREATED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_RETIRED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" >FK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >COMM_ELECTORAL_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >GEOMETRY: Polygon </TD>
</TR>
</TABLE>>];
comm_electoral [shape=plain
label=<<TABLE BGCOLOR="#FFD966"
BORDER="1"
CELLBORDER="0"
style="rounded"
CELLSPACING="0"
CELLPADDING="5">
<TR>
<TD COLSPAN="2">COMM_ELECTORAL</TD>
</TR>
<TR>
<TD BGCOLOR="white" >PK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >COMM_ELECTORAL_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_CREATED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_RETIRED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >COMM_ELECTORAL_NAME: varchar (50) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_GAZETTED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" >FK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >REDISTYEAR: number (4) </TD>
</TR>
</TABLE>>];
state_electoral_polygon [shape=plain
label=<<TABLE BGCOLOR="#7EA6E0"
BORDER="1"
CELLBORDER="0"
style="rounded"
CELLSPACING="0"
CELLPADDING="5">
<TR>
<TD COLSPAN="2">STATE_ELECTORAL_POLYGON</TD>
</TR>
<TR>
<TD BGCOLOR="white" >PK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_ELECTORAL_POLYGON_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_CREATED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_RETIRED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" >FK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_ELECTORAL_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >GEOMETRY: Polygon </TD>
</TR>
</TABLE>>];
state_electoral [shape=plain
label=<<TABLE BGCOLOR="#FFD966"
BORDER="1"
CELLBORDER="0"
style="rounded"
CELLSPACING="0"
CELLPADDING="5">
<TR>
<TD COLSPAN="2">STATE_ELECTORAL</TD>
</TR>
<TR>
<TD BGCOLOR="white" >PK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_ELECTORAL_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_CREATED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_RETIRED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_ELECTORAL_NAME: varchar (50) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_GAZETTED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >EFFECTIVE_START: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >EFFECTIVE_END: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" >FK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" >FK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_ELECTORAL_CLASS_CODE: varchar (10) </TD>
</TR>
</TABLE>>];
state_electoral_class_aut [shape=plain
label=<<TABLE BGCOLOR="#FFB570"
BORDER="1"
CELLBORDER="0"
style="rounded"
CELLSPACING="0"
CELLPADDING="5">
<TR>
<TD COLSPAN="2">STATE_ELECTORAL_CLASS_AUT</TD>
</TR>
<TR>
<TD BGCOLOR="white" >PK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >CODE: varchar (10) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >NAME: varchar (50) </TD>
</TR>
<TR>
<TD BGCOLOR="white" >FK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DESCRIPTION: varchar (200) </TD>
</TR>
</TABLE>>];
comm_electoral_polygon -> comm_electoral [arrowhead=nonetee dir=both arrowtail=crownonetee]
state_electoral_polygon -> state_electoral [arrowhead=nonetee dir=both arrowtail=crownonetee]
state_electoral_class_aut -> state_electoral [arrowhead=crownonetee dir=both arrowtail=nonetee]
{rank = same;comm_electoral; state_electoral;state_electoral_class_aut}
}
subgraph cluster_state {
graph[style="dashed,rounded" color ="#7EA6E0" label="State Boundaries" ]
state [shape=plain
label=<<TABLE BGCOLOR="#FFD966"
BORDER="1"
CELLBORDER="0"
style="rounded"
CELLSPACING="0"
CELLPADDING="5">
<TR>
<TD COLSPAN="2">STATE</TD>
</TR>
<TR>
<TD BGCOLOR="white" >PK</TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_PID: varchar (15) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_CREATED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >DATE_RETIRED: date </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_NAME: varchar (50) </TD>
</TR>
<TR>
<TD BGCOLOR="white" ></TD>
<TD BGCOLOR="white" ALIGN="LEFT" >STATE_ABBREVIATION: varchar (3) </TD>
</TR>
</TABLE>>];
}
comm_electoral -> state [arrowhead=nonetee dir=both arrowtail=crownone]
state_electoral -> state [arrowhead=nonetee dir=both arrowtail=crownone]
subgraph cluster_legend {
graph[style="" label="Legend", ranksep="0.2", nodesep="0.2"];
legend [shape=plain
label=<<TABLE
CELLBORDER="0"
Border="0">
<TR>
<TD BGCOLOR="#7EA6E0" BORDER="1"> </TD>
<TD>Spatial Attribute Table</TD>
</TR>
<TR>
<TD BGCOLOR="#FFD966" BORDER="1"> </TD>
<TD>Textual Attribute Table</TD>
</TR>
<TR>
<TD BGCOLOR="#FFB570" BORDER="1"> </TD>
<TD>Authority Code Table</TD>
</TR>
</TABLE>>]
key [shape=plain label=<<table border="0" cellpadding="1" cellspacing="0" cellborder="0">
<tr><td port="i1"> One </td> </tr>
<tr><td port="i2"> Many </td> </tr>
<tr><td port="i3"> One or Many </td> </tr>
</table>>]
key2 [shape=plain label=<<TABLE border="0" cellpadding="1" cellspacing="0" CELLBORDER="0">
<tr><td port="i1"> </td></tr>
<tr><td port="i2"> </td></tr>
<tr><td port="i3"> </td></tr>
</TABLE>>]
key:i1 -> key2:i1 [arrowhead=nonetee]
key:i2 -> key2:i2 [arrowhead=crown]
key:i3 -> key2:i3 [arrowhead=crownonetee]
legend -> key[style = invis]
}
}](../_images/graphviz-adce8616ddebff3b003293768386fdc87847b1c6.png)
